Description
Application

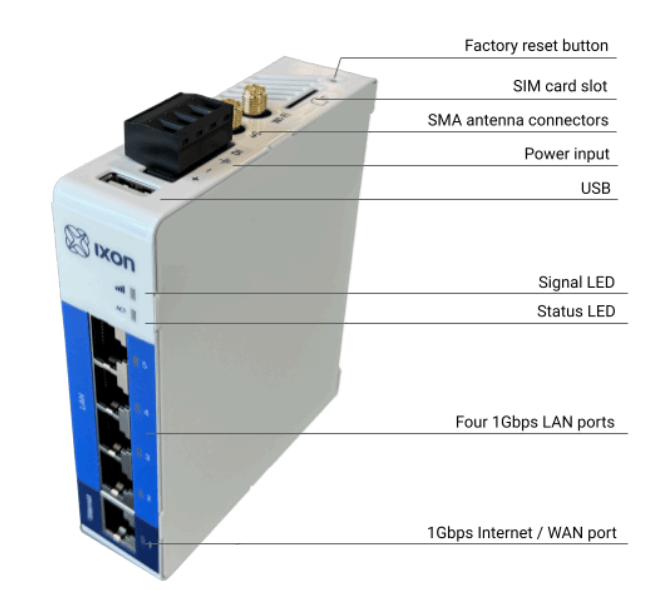

The IXrouter3 is an electrical communication device. It is only suitable for installation in control cabinets or other similar closed operating environments.
General specifications
| IX2400 | IX2410 | IX2405 | IX2405 | ||
| Power supply | 12-24 VDC +/- 20% ES1, PS2 | ||||
| Rated current | 2A | ||||
| Rated power | 2.5 W | 5 W | 5 W | 5 W | |
| Max. power | 10 W | 10 W | 10 W | 10 W | |
| Operating temperature | -20℃ to 55℃ | ||||
| Operating humidity | 10 to 95% non-condensing | ||||
| Operating altitude | Up to a maximum of 2000m | ||||
| Storage temperature | 20℃ to 55℃ | ||||
| Storage humidity | 10 to 95% non-condensing | ||||
| Storage altitude | Up to a maximum of 3000m | ||||
| Ethernet ports | 4 LAN ports, 1 WAN port. (all 1 Gbps) | ||||
| USB version | USB 2.0 | ||||
| Processor | MIPS 880 MHz | ||||
| Digital Input | 1 | ||||
| Mounting type | DIN rail | ||||
| Size | 95x116x28 mm (excl. DIN rail) | ||||
| Weight | 0.321 kg | 0.324 kg | 0.343 kg | 0.344 kg | |
