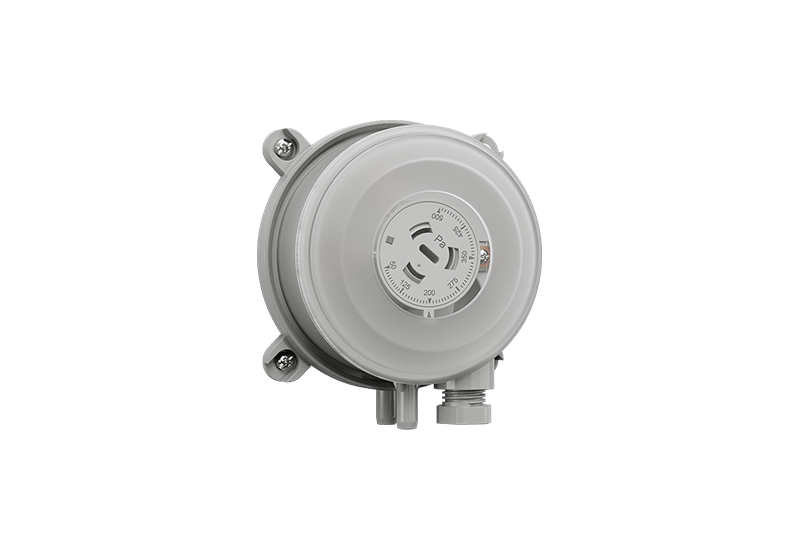

BD-355 Differential Pressure Switch
A differential pressure switch is an electromechanical control element that detects the pressure difference between two points. When this difference exceeds or falls below a set threshold, the device activates or deactivates an electrical contact, triggering or cutting off a system component.
Part#: BD-355
Condition: New
BD-355 Differential Pressure Switch
| Product Informations | |
|---|---|
| Product Name | BD-355 Differential Pressure Switch |
| Pressure Limit | 7500 Pa |
| Output | NO / NC – SPDT (Mechanical Contact) |
| Sensor | Pressure |
|---|---|
| Measuring Range | 50-500 Pa |
| Accuracy | ± % 7,5 Pa |
| Repeatability | ± % 2 |
| Product Code | Output Signal |
|---|---|
| BD-355 | NO / NC |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 80,8 mm | 91,4 mm | 44,5 mm | 63,5 mm | 6 mm | 18,5 mm |
| Weight | 1 kg |
|---|
